For the average South African consumer, buying utilities feels straightforward: you buy a voucher online or at a store, punch a series of numbers into a keypad, and the lights stay on. But behind that little plastic box on your wall is a sophisticated network infrastructure.

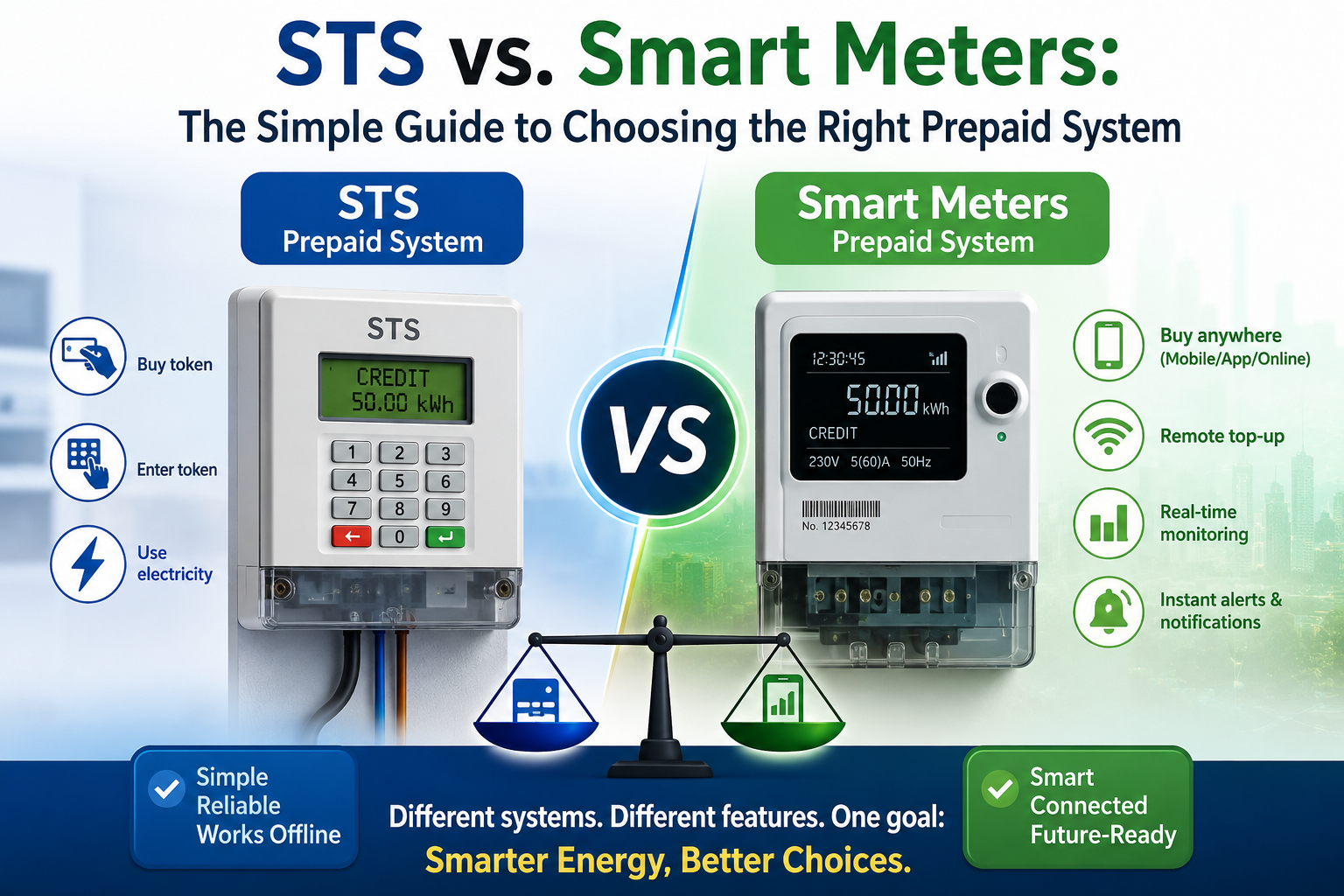

If you are a homeowner upgrading your property, or a body corporate trustee managing an entire housing complex, you will consistently run into two core technical terms: STS Prepaid Meters and Smart AMI Meters.
While both systems let you control your budget on a pay-as-you-go basis, they work in completely different ways. Let’s look at how they function and which one fits your property needs.
- Traditional STS Prepaid Meters: The Reliable Workhorse
If your prepaid meter requires you to manually punch in a 20-digit number to load credit, you are using an STS system.
How It Works
STS stands for Standard Transfer Specification. It is a secure, global communication protocol designed right here in South Africa.
Think of an STS meter as an offline safe. It has zero wireless connection to the outside world. When you buy a utility voucher, the vending platform runs a complex cryptographic calculation that locks your cash value, your unique 11-digit meter serial number, and a live timestamp directly into that 20-digit code.
Because it is an offline system, you are the data messenger. When you type those 20 digits into the keypad, the meter decodes the encrypted number, unlocks the kilowatts or water liters, and destroys the code’s timestamp so it can never be used again.
Why You Would Choose It
- Zero Connectivity Worries: Because it doesn’t need Wi-Fi, cellular signals, or radio waves to load credit, it never drops offline. It works perfectly in deep basements, rural areas, or complexes with thick concrete walls.
- Simplicity and Lower Upfront Costs: The hardware is highly standardized, making traditional STS sub-meters very cost-effective to buy and install.
- Unrivaled Security: The 20-digit token encryption framework is unhackable and prevents token cloning or theft.
- Smart AMI Meters: The Connected Future
If you buy a prepaid utility voucher and your balance tops up automatically without you touching a keypad, you are using a Smart AMI system.
How It Works
AMI stands for Advanced Metering Infrastructure. Unlike offline STS units, Smart AMI meters feature two-way, bi-directional communication. They contain internal communication modules—like 4G cellular SIM cards, radio frequency (RF) links, or Power Line Communication (PLC)—that link them directly to a live cloud server.
When you buy credit for a smart meter, the vending system sends the token over-the-air (OTA). The cloud server talks directly to the meter box, clicking the internal relays and updating your balance instantly.
More importantly, it talks back. The meter actively broadcasts live hourly usage data, current stability metrics, and system alerts back to a central property management dashboard.
Why You Would Choose It
- Maximum Convenience: No more typing long strings of numbers. It is completely automated, which is ideal for elderly residents or multi-unit rentals where typing codes is a hassle.
- Time-of-Use (ToU) Tariffs: Smart meters can alter what they charge depending on the time of day. If your estate uses solar or grid-tied battery systems, a smart meter can charge less for power used during peak afternoon solar hours and adjust when drawing from evening battery stores.
- Live Multi-Tenant Management: For complex managers and body corporates, smart meters stream real-time diagnostic data, letting you spot consumption spikes, power failures, or tamper events the exact second they happen.
The Verdict: Which One Should You Pick?
The right choice comes down to the shape of your property and your management style:
| If You Are A… | The Ideal Choice | Why? |
| Individual Homeowner / Standalone Cottage | STS Prepaid Meter | It’s affordable, bulletproof, and doesn’t require any monthly network data fees to keep it connected to a cloud server. |
| Complex Manager / Body Corporate Trustee | Smart AMI Meter | The automated over-the-air token loading removes tenant administrative work, while live dashboards let you manage common property loads seamlessly. |
| Off-Grid / Solar Estate Resident | Smart AMI Meter | It is the only option that supports dynamic, shifting tariff structures to properly balance solar generation vs. grid consumption. |
Need Expert Guidance?
Choosing the right infrastructure shape protects your property’s resale value and secures your utility billing. At Eliades Group, we supply and professionally install a premium range of both STS-compliant and Smart AMI sub-metering solutions across South Africa.
Contact the Eliades Group technical team today to find the perfect fit for your residential property or estate scheme.
